Standard Accessories
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield

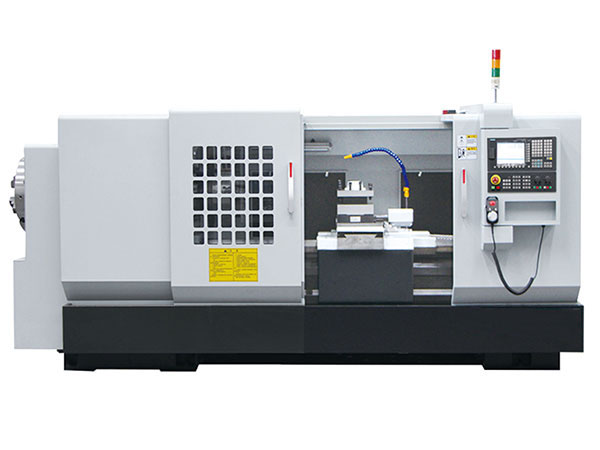

CKJ6156 SPECIAL FEATURES
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

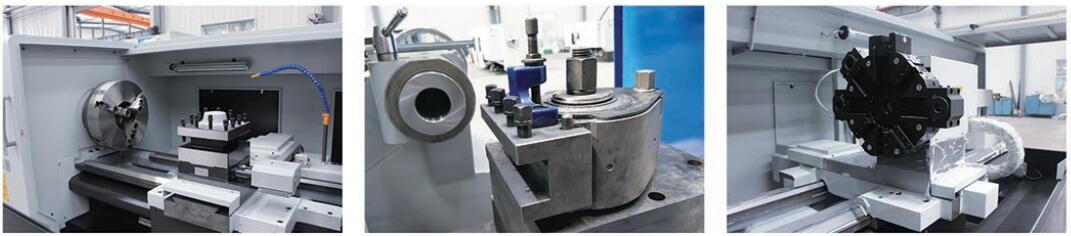

FEATURES
•Big spindle bore and double chuck to ensure process big diameter pipe
•One-piece bed adopts high strength iron to ensure rigidity and precision
•Ultrasonic frequency quenched guide-ways ensure good wear-resistance
•Carriage and guide way contact surface use Turcite B to maintain accuracy
